1500RPM 10.5kV TFC4 Series High Voltage Generators , AC Three Phase Diesel Generator

Product Categories
Wuxi Werna Alternator Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

1500RPM 10.5kV TFC4 Series High Voltage Generators , AC Three Phase Diesel Generator

Brand Name : WERNA

Model Number : WR184EC

Certification : CE,ISO9001,SASO

Place of Origin : Wuxi,China

MOQ : 5 pcs

Price : negotiation

Payment Terms : T/T

Supply Ability : 1000 units/month

Delivery Time : 15 days

Packaging Details : Plywood

Speed : 1500Rpm or 1800Rpm

Winding Pitch : 5 / 6 pitch

Warranty : 2 years

Output Type : AC Three Phase & 3 Phase diesel generators

Color : optional

Terminal : Four Wire

Contact Now

1500RPM 10.5kV TFC4 series high-voltage generators , AC Three Phase diesel generator

1, Manufacturer:

CSIC Electrical Machinery Science & Technology Co., Ltd. Output Type: AC Three Phase & 3 Phase Diesel Generators

Rated Voltage:10500V Winding Pitch: 5 /6 Pitch

Excitation: Brushless, Self-excited, Synchro Rated Current As Per Voltage:

2,Specifications:

Model TFC4
manufacturer CSIEM
Output Type AC Three Phase diesel generator
Terminal Four Wire
Rated Voltage 10.5kV
Frequency 50HZ
Speed 1500RPM
Winding Pitch 5 / 6 pitch
Excitation Brushless, self-excited, synchronous
Insulation Class H

3,Technical data

Type

 3Phase,50Hz, 1500rpm

Shaft length

Copper total weight

Core length
10.5kV
kVA kW mm kg mm
TFC4 502-4 625 500 2143 237 420
TFC4 502-4 750 600 2143 237 420
TFC4 504-4 875 700 2143 262 470
TFC4 506-4 1000 800 2288 313 540
TFC4 508-4 1125 900 2288 360 590
TFC4 508-4 1250 1000 2288 360 590
TFC4 562-4 1500 1200 2193 382 560
TFC4 564-4 1750 1400 2193 388 600
TFC4 566-4 2000 1600 2193 465 660
TFC4 568-4 2250 1800 2193 471 730
TFC4 632-4 2500 2000 2400 548 620
TFC4 634-4 2750 2200 2400 534 690
TFC4 636-4 3000 2400 2550 567 750

1500RPM 10.5kV TFC4 Series High Voltage Generators , AC Three Phase Diesel Generator


Product Tags:

1500RPM High Voltage Generators



1500Rpm Three Phase Diesel Generator



10.5kV 3 Phase Diesel Generators


Wholesale 1500RPM 10.5kV TFC4 Series High Voltage Generators , AC Three Phase Diesel Generator from china suppliers

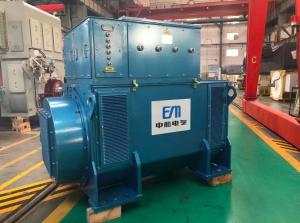

1500RPM 10.5kV TFC4 Series High Voltage Generators , AC Three Phase Diesel Generator Images
